Sherpa
Pallet Mover

Autonomous pallet lift and transport — up to 3,300 lbs (1,500 kg) — using LiDAR, cameras, and dynamic obstacle avoidance. No forklifts. No manual handling.

Request Site Assessment Download Brochure
Sherpa Pallet Mover autonomous pallet handling robot
3,300 lbs(1,500 kg)
Lifting Capacity
1.2 m/s
Max Speed
8 Hour
Battery Run Time
ISO 3691-4
Safety Certified

Autonomous Pallet Movement, Start to Finish.

The Sherpa Pallet Mover streamlines warehouse and manufacturing operations by autonomously lifting and transporting pallets. Using a combination of LiDAR sensors, cameras, and mapping technology, it dynamically navigates environments while avoiding obstacles in real time.

Designed to minimize manual labor, accelerate order fulfillment, and optimize storage workflows — the Pallet Mover handles receiving, staging, and line-side delivery without forklifts or manual handling.

Pallet Movement Solutions

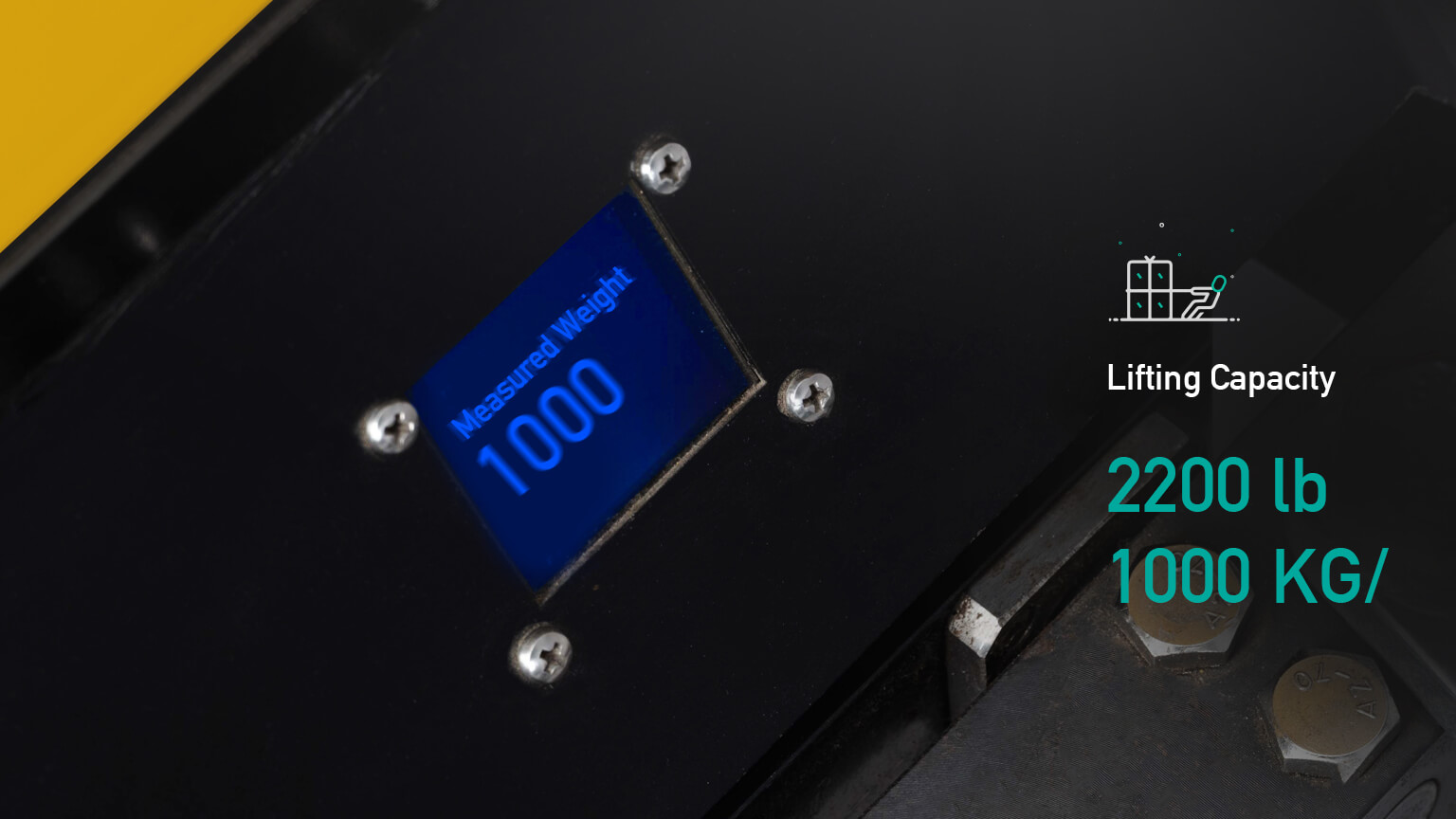

Sherpa Pallet Mover autonomously transporting a pallet in warehouse

Built for the Demands of Pallet Movement

ISO 3691-4 Certified
Third-party safety certified for autonomous vehicle operation in manufacturing and warehousing environments — covering risk assessment, safe stopping, and zone-aware navigation in spaces shared with people.
3D LiDAR Obstacle Avoidance
3D LiDAR and camera fusion provides dynamic obstacle detection and avoidance — the robot adapts to changing floor conditions and people in the aisles without stopping operations.
Precision In-Place Turning
Zero-radius turning capability enables the Pallet Mover to maneuver in tight aisles and confined staging areas — no wide turns, no additional floor space required.
Full-Shift Battery Operation
Rated for full production shift operation. Minimal downtime between shifts means the robot keeps pace with your facility's throughput demands.
Industry 4.0 Ready
Integrates with ERP, WMS, and MES systems. OTA updates and remote diagnostics via the Ati Fleet Manager platform keep the fleet current and visible from a single interface.

The Numbers Behind the Machine

Lifting CapacityUp to 3,300 lbs (1,500 kg)
Lifting Stroke4 in (100 mm)
Position Accuracy±20 mm, ±2 degrees
Dimensions (L×W×H)67 × 31 × 63 in (1,700 × 800 × 1,600 mm)
Weight992 lbs (450 kg)
Max Pallet Size54 × 47 in (1,360 × 1,200 mm)
Max SpeedUp to 1.2 m/s (2.7 mph)
Turning Radius1.7 m (67 in)
Aisle Width Required> 71 in (1.8 m) straights, > 98 in (2.5 m) docking
GradientUp to 2%
Ground Clearance1 in (25 mm)
Operating Temperature+41°F to +113°F (+5°C to +45°C)
Sensors3D LiDAR, 2D LiDAR, and Camera
NavigationNatural Navigation — no infrastructure changes required
Battery51V NMC Li-Ion (Swappable) — 8 hr run, 2 hr charge, 55 Ah
CertificationsISO 3691-4
Download Brochure
Sherpa Pallet Mover product view
Sherpa autonomous mobile robot operating across indoor and outdoor industrial environments

Replace Forklifts. Keep the Throughput.

An Ati Motors engineer will walk your facility, map your pallet flows, and show you exactly where the Pallet Mover fits — before you commit to anything.

Request Site Assessment Contact Sales
