Sherpa
Pivot

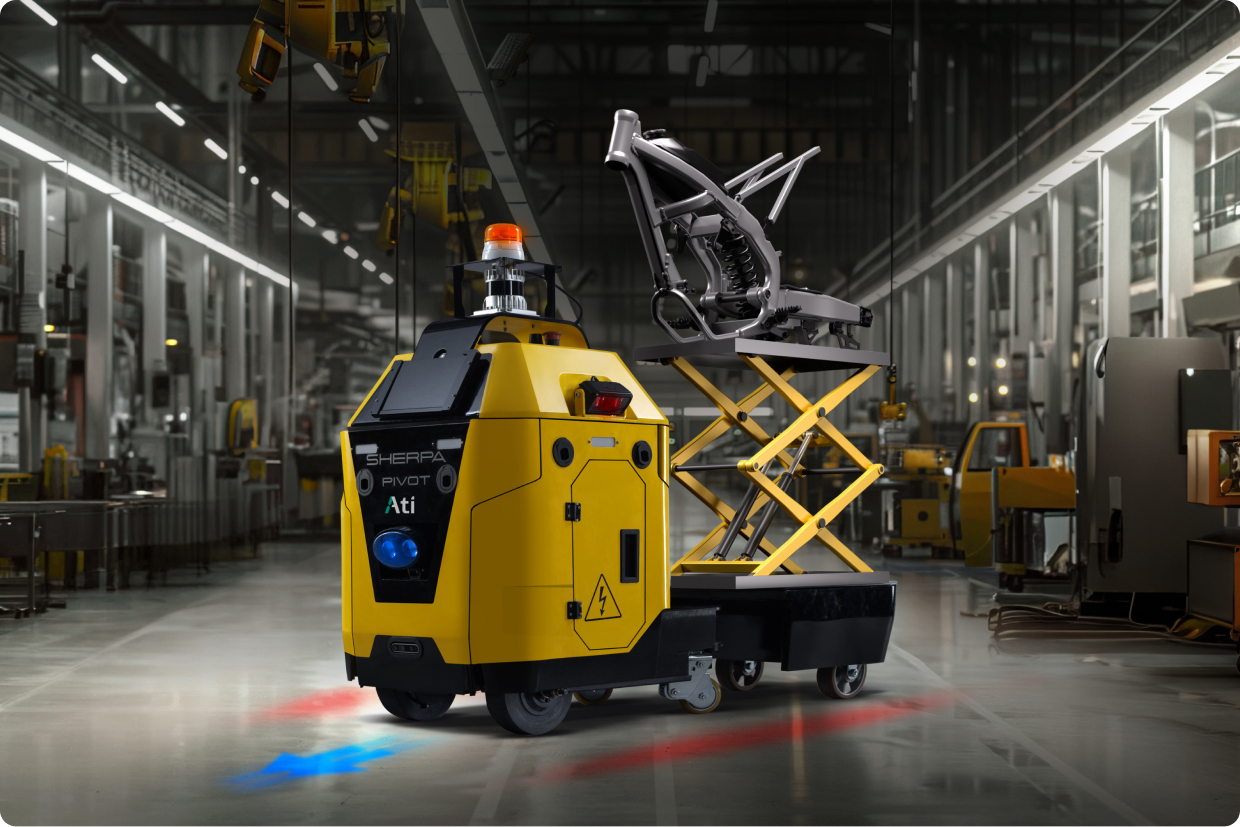

A maneuverable, modular AMR with mono fork and trailing unit attachments — built for adaptable material transport in dynamic industrial environments. Up to 1,100 lbs (500 kg).
Modular by Design. Adaptable by Default.
The Sherpa Pivot streamlines warehouse operations by autonomously transporting customized trailing units. Its modular attachment system — mono fork and trailing unit — allows the robot to adapt to varied load types and floor configurations without retooling.
Designed to seamlessly integrate into existing shop floor layouts, the Pivot is equally capable in out-of-the-box applications and in emerging use cases that standard fixed-path AMRs can't address.
Lifting & Handling Solutions
Precision. Flexibility. Safety.
The Numbers Behind the Machine
| Tugging Capacity | Up to 1,100 lbs (500 kg) |
| Dimensions (L×W×H) | 59 × 23 × 82 in (1,486 × 578 × 1,087 mm) |
| Weight | 265 lbs (120 kg) |
| Max Speed | Up to 1.5 m/s (3.3 mph) |
| Turning Radius | 2 m (79 in) |
| Aisle Width Required | > 59 in (1,500 mm) |
| Gradient | Up to 2% |
| Ground Clearance | 3 in (75 mm) |
| Operating Temperature | +41°F to +113°F (+5°C to +45°C) |
| IP Rating | IPX4 |
| Navigation | Natural Navigation — no infrastructure changes required |
| Sensors | 3D LiDAR and Camera |
| Attachments | Mono fork and trailing unit (modular, interchangeable) |
| Battery | 51V NMC Li-Ion (Swappable) — 8 hr run, 2 hr charge, 55 Ah |
| Certifications | ISO 3691-4 |
Lifting & Handling Starts Here
An Ati Motors engineer will walk your facility, identify the material flows where the Pivot fits, and configure the right attachment combination for your tasks.
