Sherpa Lifter
500
The Sherpa Lifter 500 is a latest-generation autonomous mobile robot (AMR) from Ati Robotics that automatically lifts and transports palletized loads and bins up to 1,100 lb (500 kg) across factories, warehouses, and logistics floors — using 3D LiDAR natural navigation with no infrastructure changes.
A Latest-Generation Lifter, Right-Sized for Your Loads
The Sherpa Lifter 500 is the newest addition to the Sherpa Lifter lineup — a compact AMR built for smart, automated pallet handling, bin, and material movement. It's designed to integrate seamlessly into any modern warehouse or factory, offering flexible top-module configurations and reliable operation in demanding environments.
For standard pallet and bin duty up to 1,100 lb (500 kg), the Lifter 500 is the right-sized choice — advanced safety, intuitive operation, and versatile customization make automated logistics simple, efficient, and reliable so operations keep moving forward, nonstop.
Lifting & Handling Solutions
Built for Flexible, Everyday Material Movement

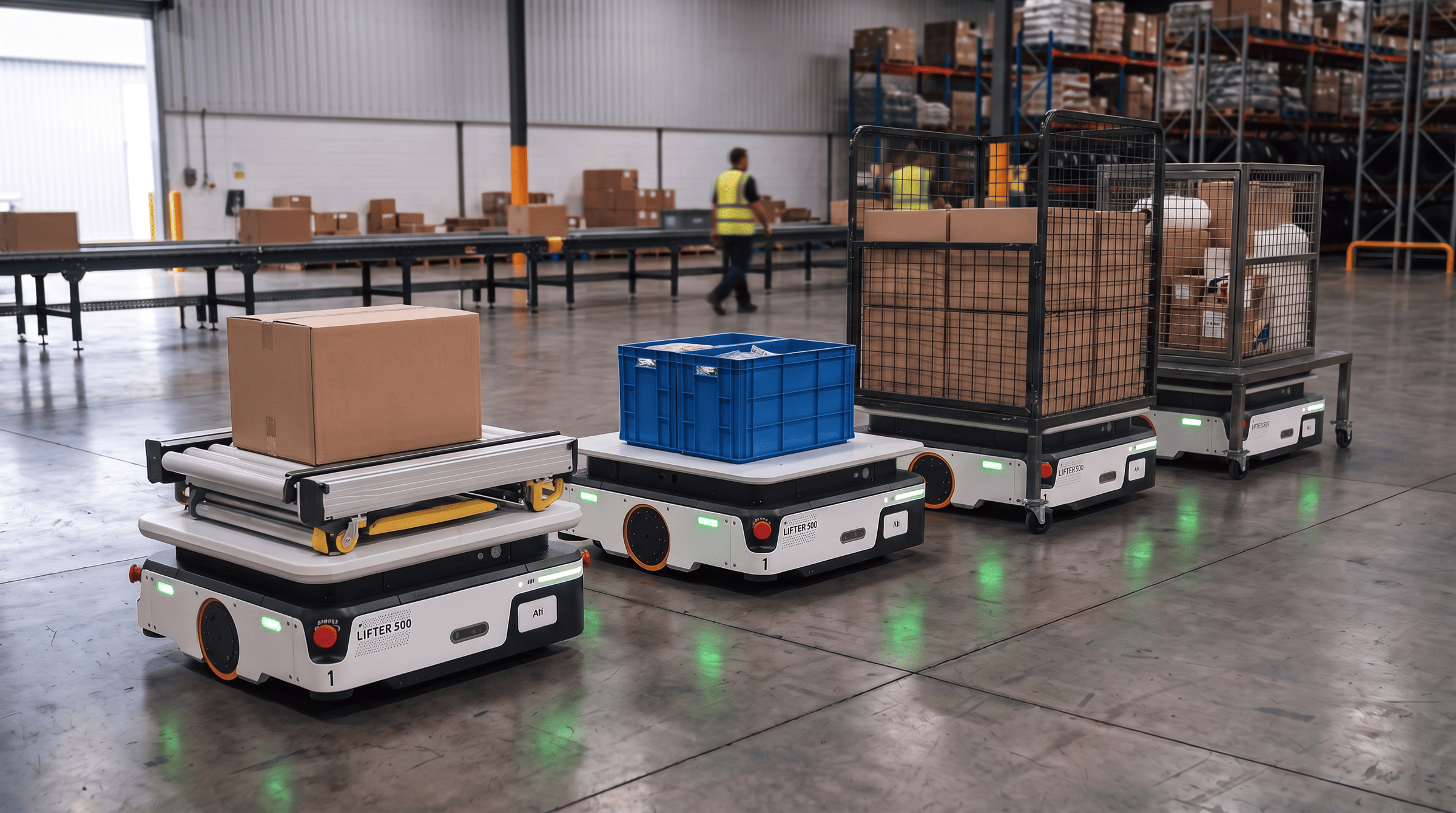

Custom Lifting Applications

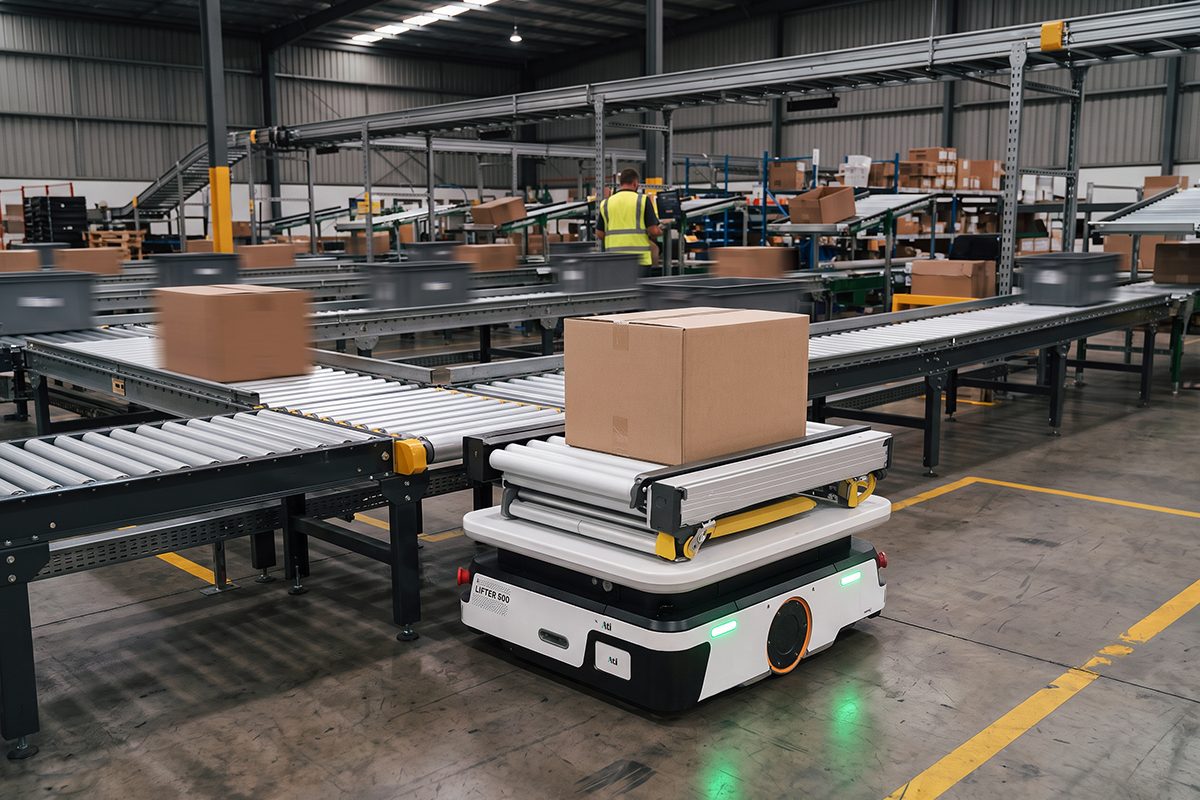

Dual-Direction Travel & Conveyor Transfer
3D LiDAR Natural Navigation
Auto Charging & Full-Shift Battery
ISO 3691-4 Certified
Industry 4.0 Ready
The Numbers Behind the Machine
| Lifting Capacity | Up to 1,100 lbs (500 kg) |
|---|---|
| Max Speed (Unladen) | Up to 2.7 mph (1.2 m/s) |
| Navigation | 3D LiDAR + camera, natural navigation — no infrastructure changes required |
| Sensor Coverage | LiDAR 59° + camera 58° |
| Dimensions (L×W×H) | 30 × 22 × 11 in (780 × 580 × 280 mm) |
| Weight | 617 lbs (280 kg) |
| Ground Clearance | 0.9 in (25 mm) |
| Turning Radius | In-place (zero-radius) turn |
| Aisle Width Required | > 47.2 in (1,200 mm) |
| Gradient | < 2% |
| Operating Temperature | +41°F to +113°F (+5°C to +45°C) |
| Battery | 51V NMC lithium-ion, 55 Ah, 39 lbs (18 kg) |
| Runtime / Charge Time | 8 hr run / 2 hr charge, with automatic opportunity charging |
| Safety Compliance | ISO 3691-4 |
| Fleet / Integration | VDA 5050, MES/WMS, OTA updates, Ati Fleet Manager |
Where the Sherpa Lifter 500 Works

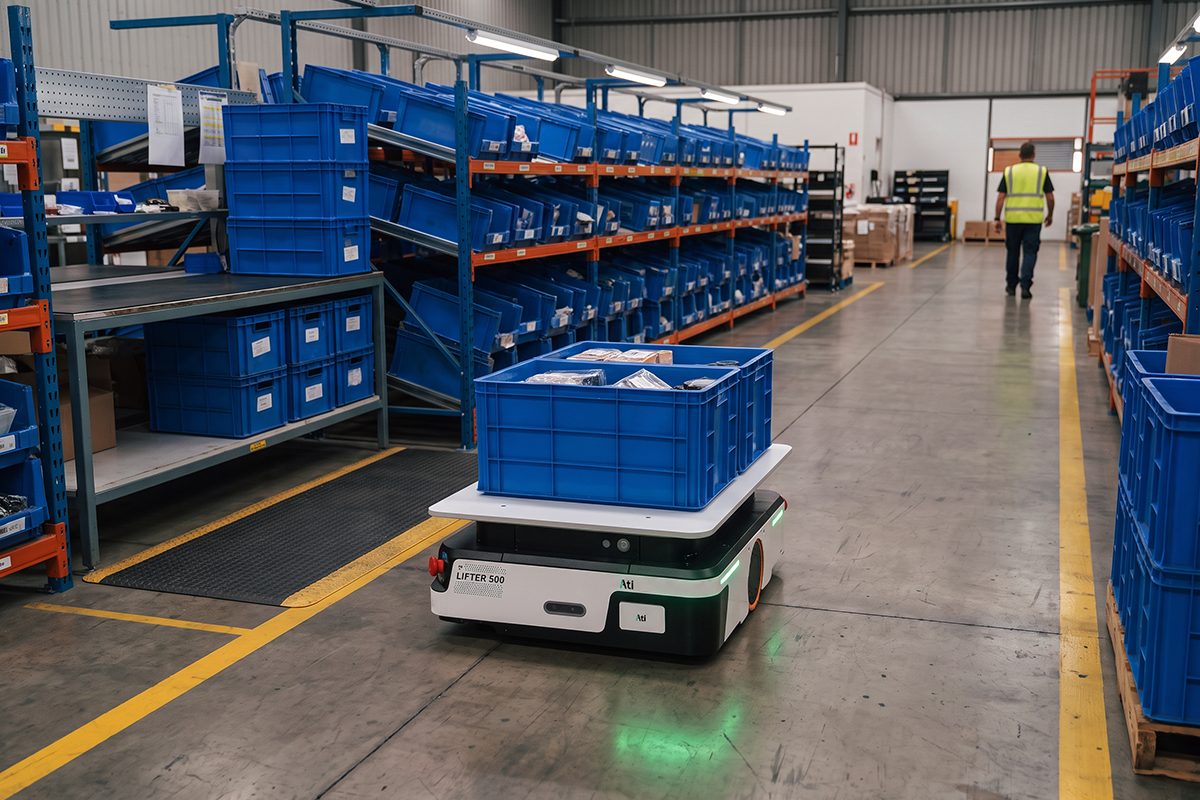

Standard pallet and bin duty across manufacturing, warehousing, and logistics floors — anywhere a repeatable, mid-weight material move ties up a person or a forklift that could be doing something else.
Frequently Asked Questions
What is the Sherpa Lifter 500?
The Sherpa Lifter 500 is a latest-generation autonomous mobile robot (AMR) from Ati Robotics that automatically lifts and transports loads up to 500 kg (1,100 lb) in factories and warehouses, using 3D LiDAR natural navigation.
What is the lifting capacity of the Sherpa Lifter 500?
Up to 500 kg (1,100 lb).
How fast does the Sherpa Lifter 500 travel?
Up to 1.2 m/s (2.7 mph) unladen.
How does the Sherpa Lifter 500 navigate?
3D LiDAR and camera natural navigation, with no tape, magnets, or infrastructure changes required. It operates reliably in twilight and dark conditions.
How much aisle width does the Sherpa Lifter 500 need?
The Sherpa Lifter 500 requires more than 47.2 in (1,200 mm) of clear aisle width to operate, using in-place (zero-radius) turning to maneuver in tight spaces.
What safety standard does the Sherpa Lifter 500 meet?
ISO 3691-4, the safety standard for driverless industrial trucks.
How long does the Sherpa Lifter 500 battery last?
8-hour runtime on a 2-hour charge, from a 51V NMC lithium-ion battery, with automatic opportunity charging.
Can the Sherpa Lifter 500 integrate with a WMS or MES?
Yes — it's Industry 4.0 ready, with VDA 5050 and MES/WMS integration managed through Ati Fleet Manager.
Is the Sherpa Lifter 500 an AMR or an AGV?
It's an AMR. It uses natural navigation with no fixed infrastructure, unlike a traditional AGV that follows tape, magnets, or wires.
Is the Sherpa Lifter 500 available as robotics-as-a-service?
Ati Robotics offers both robotics-as-a-service (RaaS) and direct purchase options. Contact sales to scope the model that fits your deployment.
Who makes the Sherpa Lifter 500?
Ati Robotics, with operations across the US, Mexico, India, and Southeast Asia.
What loads and industries is the Sherpa Lifter 500 for?
Pallets and bins up to 500 kg (1,100 lb) in manufacturing, warehousing, and logistics settings.
Is the Sherpa Lifter 500 a robotic forklift alternative?
Yes. The Sherpa Lifter 500 handles the same pallet and bin moves a forklift would, without a licensed operator, without lane closures for pedestrian safety, and without the collision risk of a forklift sharing an aisle with foot traffic.
Find the Right Lifter for Your Floor
An Ati Robotics engineer will walk your facility and identify exactly where the Lifter 500's compact footprint fits your material flows and throughput targets.
