Pallet & Trolley Movement

Sherpa
Flexfork

Autonomous trolley lift and transport up to 500 kg. Single robust fork, 3D LiDAR, camera fusion, and natural navigation. Robust. Accurate. Consistent.

Request Site Assessment Download Brochure

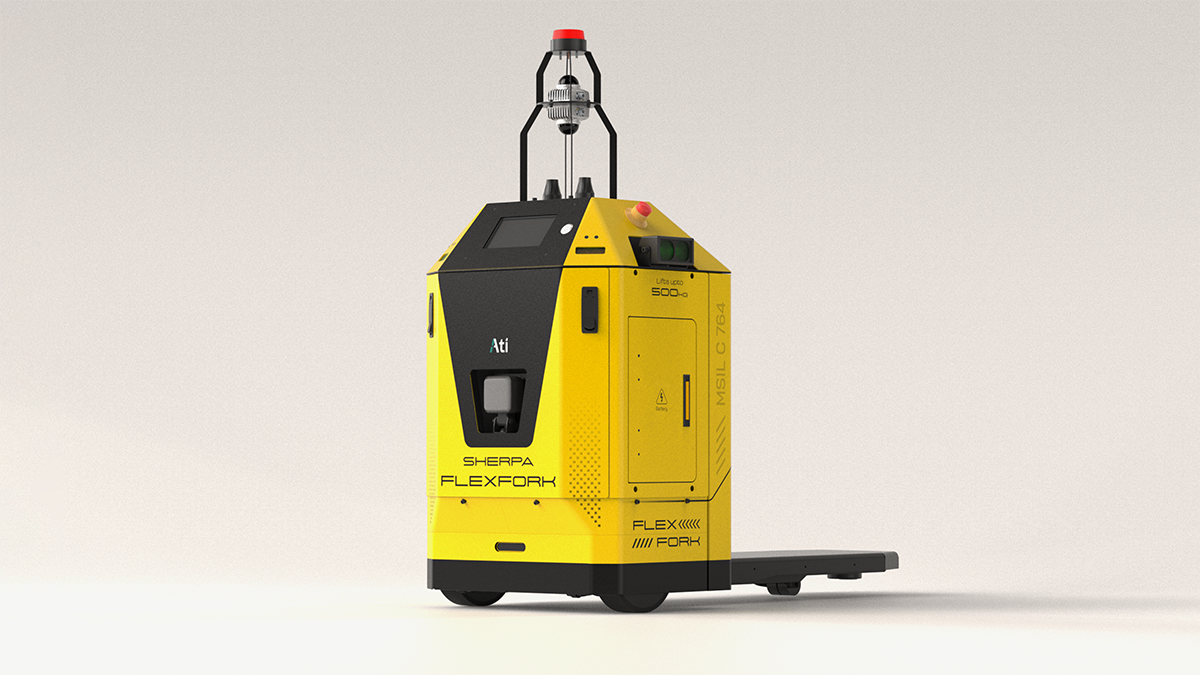

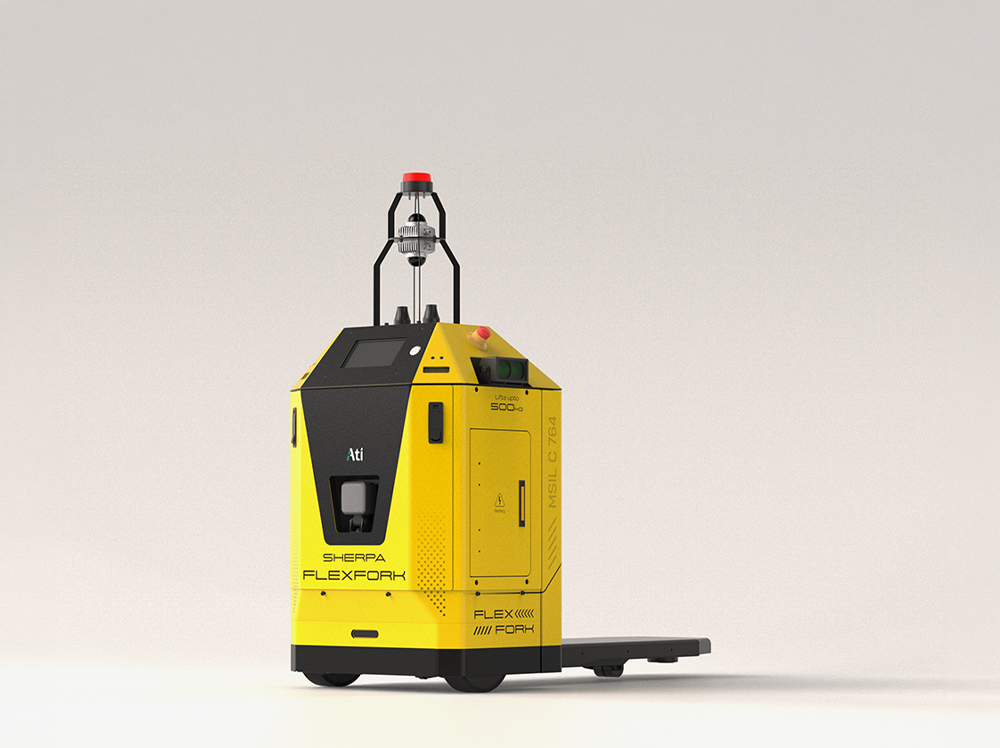

Sherpa Flexfork autonomous trolley lifting and transport robot
500 kg
Lifting Capacity
1.2 m/s
Max Speed
8 Hours
Battery Run Time
ISO 3691-4
Safety Certified

Trolley Lift and Transport, Without the Manual Effort.

The Sherpa Flexfork is a versatile AMR that autonomously lifts and transports trolleys using a single robust fork. 3D LiDAR, 2D LiDAR, and camera fusion deliver dynamic obstacle avoidance and AI-driven pallet and trolley detection — the robot finds, lifts, and moves loads without fixed infrastructure or floor markings.

Designed for warehouse staging, replenishment, and returns workflows — the Flexfork handles up to 500 kg (1,100 lb), turns in place, and fits through 1.2 m aisles. Swappable lithium-ion battery keeps it running across multi-shift operations.

Pallet Movement Solutions

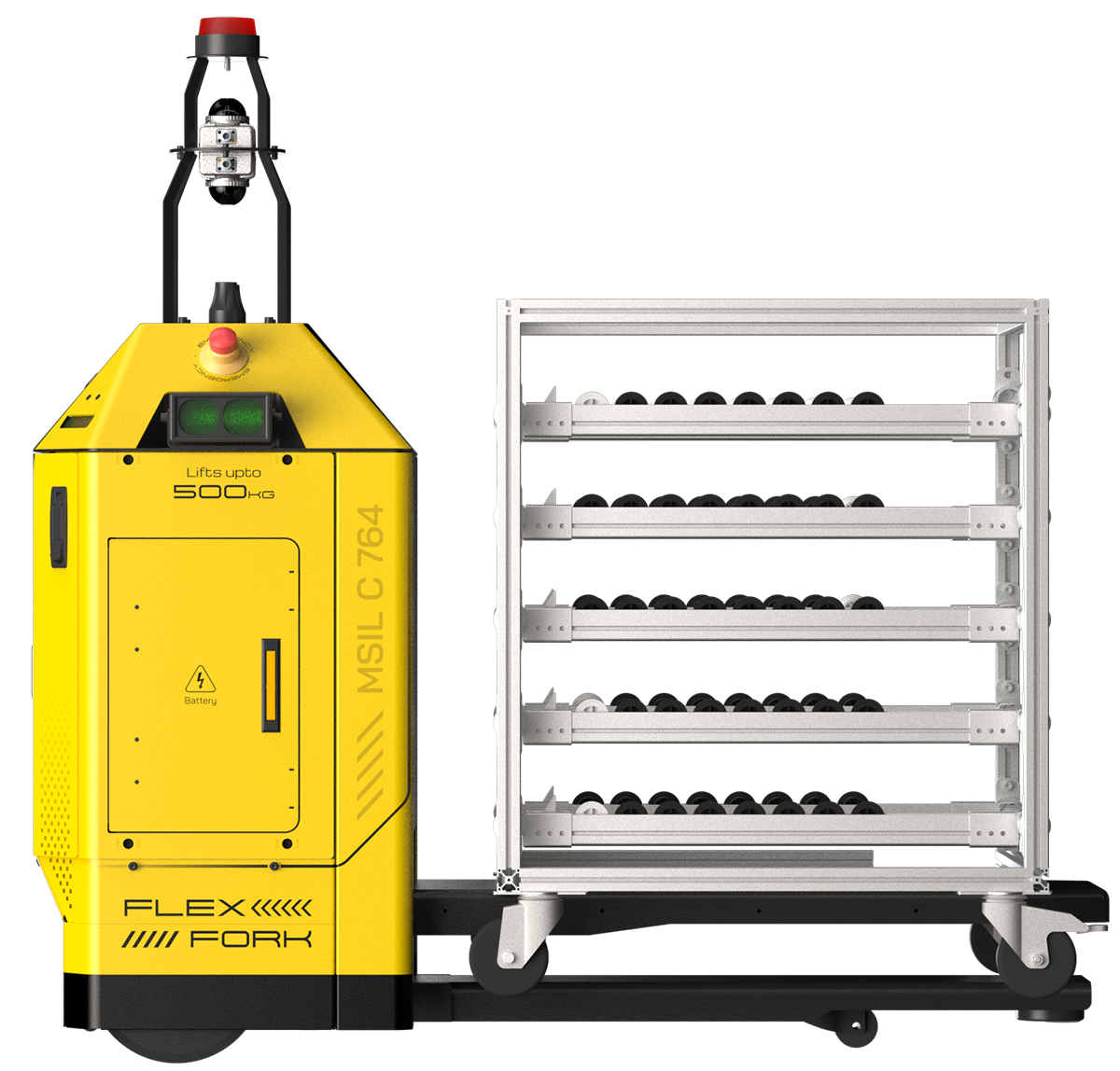

Sherpa Flexfork autonomously transporting a trolley in warehouse environment

Built for Trolley-Based Workflows.

AI Pallet & Trolley Detection
On-board AI identifies target pallets and trolleys without fixed infrastructure. The Flexfork approaches, aligns, and lifts with position accuracy of ±30 mm and ±3 degrees — no floor markings, no custom fixtures.
3D LiDAR Obstacle Avoidance
3D and 2D LiDAR paired with camera vision provide dynamic obstacle detection. The robot adapts to changing floor conditions and people in the aisles without stopping operations — even in twilight or dark-mode environments.
Natural Navigation
No reflectors, tape, or infrastructure changes required. The Flexfork maps facilities using existing features and operates in any lighting condition, day or night.
In-Place Turning, 1.2 m Aisle Clearance
Zero-radius turning enables the Flexfork to maneuver in tight aisles, staging areas, and confined workspaces — requires only 1.2 m (47 in) of aisle width to operate.
Swappable Battery, Multi-Shift Operation
51V NMC Lithium-Ion battery delivers 8 hours of run time and recharges in 2 hours. Swappable design keeps the robot productive across extended shifts with minimal downtime.
Industry 4.0 Ready
Integrates with Factory MES, WMS, and ERP systems. OTA software updates and remote diagnostics via the Ati Fleet Manager platform keep the fleet current and visible from a single interface. Supports VDA 5050, fleet analytics, and scheduling.
Manual Override
Full manual control available when workflows demand direct operator intervention. Seamless hand-off between autonomous and manual modes keeps operations flexible.
ISO 3691-4 Safety Compliant
Certified for autonomous vehicle operation in manufacturing and warehousing environments — covering risk assessment, safe stopping, and zone-aware navigation in spaces shared with people.

The Numbers Behind the Machine.

Lifting Capacity500 kg (1,100 lb)
Lifting Stroke150 mm (5.9 in)
Position Accuracy±30 mm, ±3 degrees
Max SpeedUp to 1.2 m/s (2.7 mph)
Turning RadiusIn-place turn
Aisle Width Required> 1.2 m (47 in)
Gradient< 2%
Operating Temperature+5°C to +40°C (+41°F to +104°F)
Dimensions (L × W × H)1,237 × 538 × 1,198 mm (48.7 × 21.2 × 47.2 in)
Weight160 kg (352.7 lb)
Ground Clearance30 mm (1.2 in)
Sensors3D LiDAR, 2D LiDAR, Camera
NavigationNatural Navigation — no infrastructure changes required
Battery Type51V NMC Lithium-Ion (Swappable)
Battery Run Time8 hours
Charging Time2 hours
Battery Capacity55 Ah
CertificationsISO 3691-4
ConnectivityOTA updates, remote diagnostics via Ati Fleet Manager
IntegrationsERP, WMS, MES; VDA 5050; Manual override
Download Full Brochure

Lift a Trolley. Free a Team.

An Ati Robotics engineer will walk your facility, map your trolley flows, and show you exactly where the Flexfork fits — before you commit to anything.

Request Site Assessment Contact Sales
